Recover RAW Partition in Windows, Here's What to Do

Updated on Tuesday, May 24, 2022

iBoysoft author Anna Yuan

Written by

Anna Yuan
Professional tech editor

Approved by

Connie Yang

Recover RAW Partition in Windows, Here's What to Do

Summary: This post tells how to fix the RAW partition on Windows using the Diskpart utility, Disk Management, and File Explorer. To prevent possible data loss, try to use iBoysoft Data Recovery to recover data from the RAW partition before starting the fix.

fix RAW partition in Windows

All file storage devices, including external hard drives, USB flash drives, and SD cards, can become RAW due to unsafe ejection, virus infection, bad sectors, corrupted file systems, damaged partition tables, or other reasons.

If you are familiar with commands on Windows, you might know that chkdsk is one command to check and fix minor disk problems. In addition to chkdsk, The DiskPart command line is another one to fix the RAW partition.

In this article, we will give you a step-by-step guide to fix the RAW partition on Windows without losing data. Before you read the instructions to fix the RAW partition using DiskPart, take a quick look at the overviews of RAW partition and DiskPart utility in the following sections.

Table of Contents:

What is RAW partition?

A partition is a section of a hard drive, which can be used to store data. When you partition a hard drive, you can select a file system for partition such as NTFS, FAT32, exFAT, etc. In Windows, NTFS is the default file system on a hard drive and FAT for removable disks.

However, during the process of using a storage device, a partition may become RAW file system. A RAW partition means a partition with an unknown or unrecognized file system. It often represents that your disk or partition has some logical or physical problems and can't work properly on the operating system.

If Windows operating system cannot recognize the file system of a partition, it won't allow any users to access the stored files on the partition. But how do you know whether your drive has a RAW partition or not? Learning the following symptoms of the RAW drive issue will help you out.

Symptoms of RAW drive issue

The RAW drive problem does not always happen, but it brings big trouble when it occurs. It often appears with the following symptoms if the partition is corrupted or becomes RAW:

  • When you attempt to open the drive in File Explorer, a message would appear saying "Disk is not formatted. The disk in drive G is not formatted. Do you want to format it now?"
  • You need to format the disk in drive E: before you can use it. Do you want to format it?
    You need to format the disk in drive before you can use it
  • The drive is not accessible. The parameter is incorrect.
  • Location is not available. E:\ is not accessible. The volume does not contain a recognized file system. Please make sure that all required file system drivers are loaded and that the volume is not corrupted.
    This volume does not contain a recognized file system
  • If you run chkdsk for the RAW drive, you will receive the error message: The type of the file system is RAW. Chkdsk is not available for RAW drives or Convert is not available for RAW drives, chkdsk reports the RAW file system.
  • Location is not available. H:\ is not accessible. The file or directory is corrupted and unreadable.
  • If you check properties for the drive, you can see the file system is RAW. In some cases, the free space is showing 0 bytes in size.

When you see those error messages appear on your computer desktop, do not format the RAW partition immediately even though Windows asks you to do so. Since formatting may cause further damage to the RAW drive and add difficulty to RAW partition recovery.

The overview of DiskPart

DiskPart is a powerful built-in command-line utility on Windows 11/10/8/7/Vista/XP/2000. It allows users to manage the partitions both on the computer's internal disk and on external disks. You can use it to list, view, create, delete or modify a partition. Therefore, it is helpful for fixing RAW or corrupted partitions.

Then how to perform RAW partition recovery and solve the RAW drive problems? You can find it out in the next section.

How to use DiskPart to fix RAW partition without losing data?

The way DiskPart fixes a RAW partition is to change RAW files system to NTFS-formatted or FAT32-formatted file system. Before you proceed to fix the RAW partition by using DiskPart to convert RAW partition to NTFS or FAT32, you need to know that the process will delete all the data on the RAW partition and reassign a file system to it.

If you have important files on the RAW partition, you need to stop using the hard drive in case the recoverable data will be overwritten and perform RAW data recovery first. For example, you can run a RAW Partition recovery software like iBoysoft Data Recovery.

Step 1: Recover lost data from RAW partition

iBoysoft Data Recovery is one of the best Partition recovery software in the market. It is able to recover photos, videos, documents, audio, and other files from RAW hard drives, SD cards, USB flash drives, memory sticks, and other storage devices.

In addition to recovering data from RAW partition, it supports recovering deleted or lost files from corrupted, inaccessible, formatted partitions or disks. Besides, it is capable of finding lost or deleted partitions and retrieving data from them.

Another key feature worth mentioning about iBoysoft Data Recovery is its ability to recover data from BitLocker-protected partitions.

RAW partition recovery

  • Recover photos, videos, documents, audio, music, etc.
  • Recover files from RAW hard drives, RAW USB flash drives, RAW SD memory cards, RAW memory sticks, etc.
  • Recover files from formatted/corrupted/inaccessible drives or partitions
  • Recover files from BitLocker protected or deleted/lost partitions
  • Support OS: Windows 11/10/8/7/Vista/XP and Windows Server 2019/2016/2012/2008/2003

 Read-only & risk-free



Follow the step-to-step guide below to run this RAW partition recovery software:

  1. Free download, install and launch iBoysoft Data Recovery on your PC. Choose RAW Drive Recovery mode from the three options.
    iBoysoft Data Recovery
  2. Select the RAW partition in the drive list and click Next to start RAW drive recovery.
    iBoysoft Data Recovery scanning lost files
  3. Preview the recovered files after the scanning process is finished.
    Preview files with iBoysoft Data Recovery
  4. Select needed files, and then click Recover. Save the recovered data to another external hard drive.

Step 2: Use DiskPart to fix RAW partition to NTFS

After finishing the RAW partition recovery and getting all recovered files, it's time to use DiskPart to convert RAW file system to the NTFS file system without worrying about data loss.

Here are the steps about how to use DiskPart to fix RAW partition to NTFS:

1. Click the Start button.

2. Type in diskpart in the search box.

3. Right-click on diskpart.exe and select Run as Administrator.

4. Run the following command line to list all the available partitions and drives.list volume

According to the listed storage device information, locate the RAW storage device. Scroll down to the picture below. In the picture, F is the target RAW volume and its "Volume 6" in the list.

Fix raw partition or disk using DiskPart command

5. Run the following command line. Be sure to choose the correct drive/partition and replace the volume with your RAW disk/partition.select Volume 6

6. Run the below command line. If you want to change RAW to FAT32, change the command line to format fs=fat32 quick.format fs=ntfs quick

7. Run the following command line to close the command prompt after you have seen the message saying "DiskPart successfully formatted the volume".exit

Other ways to fix RAW partition error

Besides using DiskPart, you can also repair RAW external hard drives and other RAW storage devices by reformatting them in Windows Disk Management or in File Explorer.

Solution 1: Format RAW partition in Disk Management

Disk Management is a built-in utility on Windows for users to view and manage the internal disk or external disks. You can use it to format a disk. The steps are simple.

  1. Go to This PC.
  2. Right-click on This PC and select Management.
  3. Choose Disk Management.
  4. Locate the RAW partition, right-click on the RAW partition, and select Format.
    fix raw partition by formatting partition in Disk Management
  5. Input needed information and make sure Quick format is checked.
  6. Click on the Format button. Once the process is finished, your disk or partition is no longer in RAW format.

Solution 2: Format RAW partition in File Explorer

File Explorer is a file browser on Windows. Users can utilize it to locate and manage drives, folders, and files. You can perform formatting a disk through it as well.

  1. Open File Explorer and navigate to "This PC".
  2. Right-click on the RAW drive/partition which you want to format.
  3. Select the Format option.
  4. Select a file system for the drive from the File System drop-down box and make sure Quick format is checked.
  5. Then, click on the Format button and click the OK button when you get the confirmation dialog to format the drive.

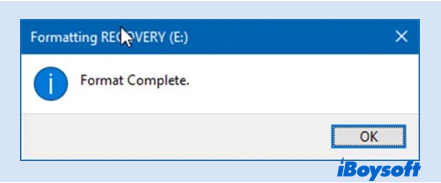

    formatting partition in File Explorer completes

It's worth mentioning again that any of the methods will delete all saved files on the RAW partition or make files unrecoverable even with data recovery software. Therefore, if you don't have any backups, you'd better restore files from the RAW disk or partition first before attempting to fix the RAW partition.

How to avoid facing a RAW partition again?

Even though RAW data recovery is possible, you should always do whatever you can to avoid ending up with a RAW partition or a RAW drive. Here are some tips to help you:

  • Create backups: Drives can become RAW for a whole number of reasons, and you can't reliably protect yourself against all of them. That's why you should always create backups of important data and keep them somewhere safe—you never know when you'll need them.
  • Avoid pirated software: The internet is full of pirated and shady software applications that are either downright malicious or programmed so poorly that they can cause serious damage. If at all possible, download only reputable software applications from established developers.
  • Be careful when formatting: Always double-check or triple-check which drive you're about to format because a single mistake could cost you all your data. And don't interrupt the reformatting process until it is accomplished.
  • Scan your computer for malware: Malware can cause all kinds of nasty issues, and it might even turn a perfectly working drive into a blank slate. To protect yourself against the latest cyber threats, make sure to have a reliable anti-malware solution installed on your computer, and don't forget to use common sense when browsing the internet and reading email messages.

FAQs about fixing RAW partition

A

You can recover files from a RAW partition or RAW drive using a professional data recovery software like iBoysoft data recovery software:

1. Download and install iBoysoft Data Recovery on your computer.
2. Launch it and scan your RAW partition on the drive.
3. Preview and select the files you want to recover.
4. Click the Recover button and save recovered files to another safe location.

A

RAW drive data recovery is the process of extracting files from a storage device that no longer has a functioning file system.

A

A RAW file system can be accessed using special recovery tools like DiskGenius. However, you won't be able to see the content of a RAW drive in your favorite file manager until you convert it to a usable file system, such as NTFS or FAT32.
